di2: LA audio Di2 Active 1 channel DI box
€5,00

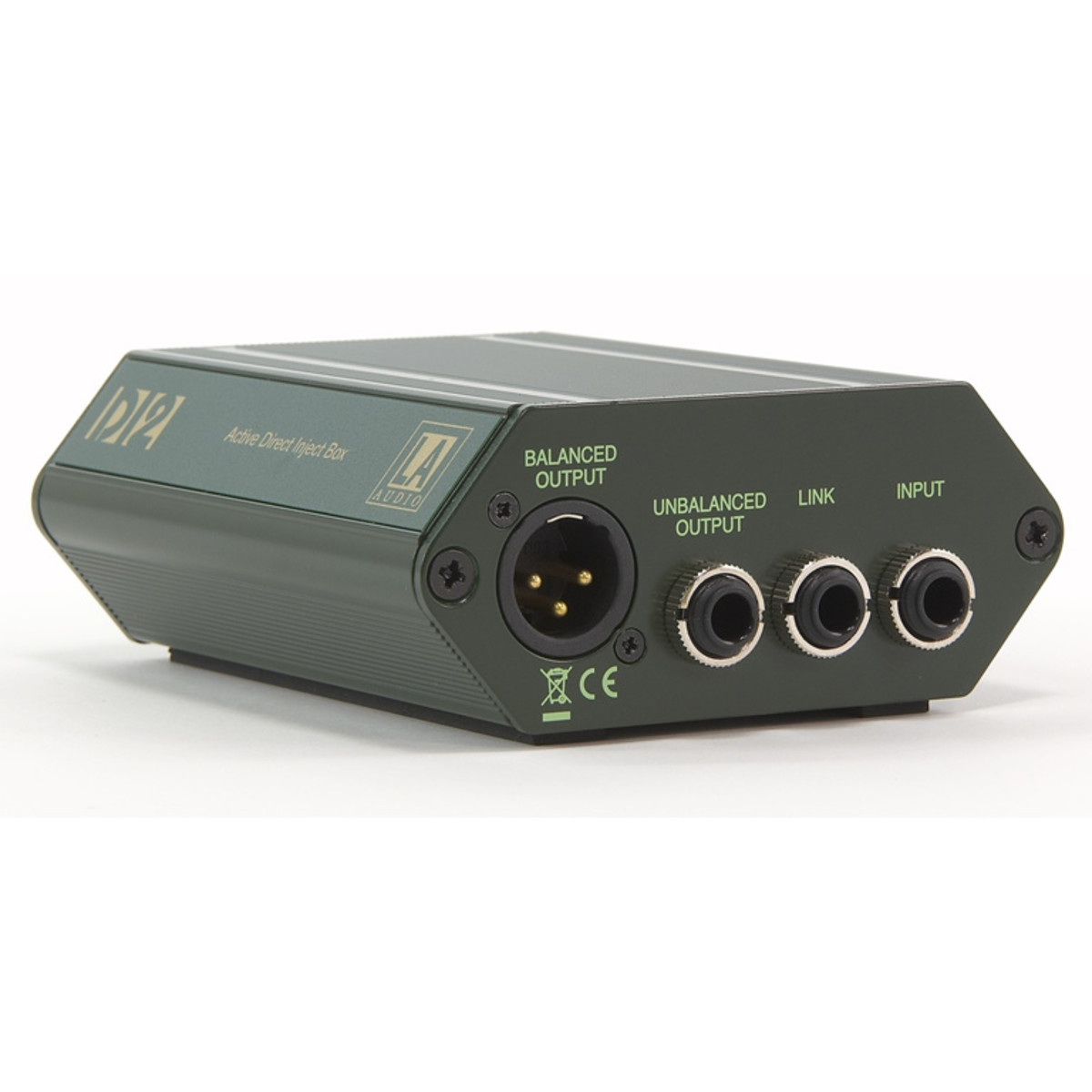

The Di2 Mk3 is a single channel Active DI housed
in a tough extruded aluminium case, which may be
powered from Phantom Power, or by two internal
PP3 batteries. Low power consumption circuitry
extends battery life up to 300 hours. Unintentional
battery drain is avoided through use of automatic
Phantom Power detection and automatic power
shut-off on disconnection of the input signal.
SPECIFICATIONS
ELECTRICAL
Frequency response:
Signal to Noise ratio:
Input impedance:
Output impedance:
Load impedance:
THD:
Phantom Power:
Phantom supply:
Batteries:
PHYSICAL
Connectors:
Unbalanced Output:
Balanced output:
Dimensions (mm):
Weight:
Shipping weight:
Operating temperature:
Storage temperature:
20Hz-20kHz (+0 -2dB)
> 100dB (0dB gain)
> 85dB (+20dB gain)
Normal: 1M
Pad: 10k
330R (Balanced)
2k2k (Unbalanced)
> 300R (Balanced)
> 2k (Unbalanced)
< 0.025% (0dB Gain)
< 0.12% (+20dB Gain)
15-48 volts
1mA (1k2 load)
2 x 9V batteries PP3, 1604
Input: 1/4″ jack
Link: 1/4″ jack
1/4″ jack
Male XLR 3 pin (Pin 2 hot)
105 (4.75″) W
50 (3.75″) H
125 (2.25″) D
0.3kg
0.36kg
0°C to +50°C
-30°C to +75°C
