Acoustical operating principle Pressure gradient transducer
Directional pattern supercardioid
Frequency range 20 Hz … 20 kHz
Sensitivity at 1 kHz into 1 kohm 4.5 mV/Pa
Rated impedance 50 ohms
Rated load impedance 1 kohms
Equivalent noise level, CCIR1) 28 dB
Equivalent noise level, A-weighted1) 18 dB-A
Signal-to-noise ratio, CCIR1) (rel. 94 dB SPL) 66 dB
Signal-to-noise ratio, A-weighted1) (rel. 94 dB SPL) 76 dB
Maximum SPL for THD 0.5%2) 150 dB
Maximum output voltage 12 dBu
Supply voltage (P48, IEC 1938) 48 V ± 4 V
Current consumption (P48, IEC 1938) 3.5 mA
Matching connector XLR3F
Weight approx. 300 g
Diameter 48 mm
Length 180 mm

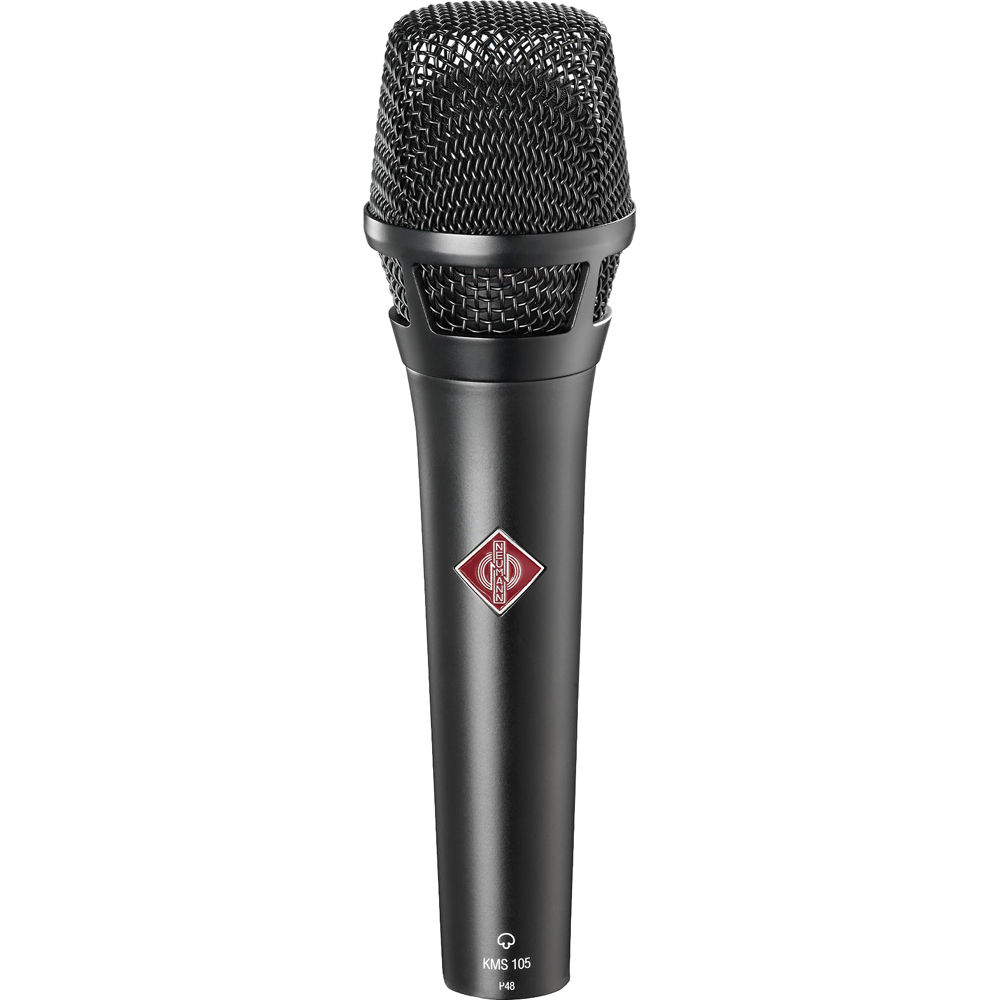

Neumann KSM 105
The KMS 105 microphones have been developed to optimally transmit the human voice with respect to the demanding conditions present on the live stage.
The KMS series has become the internationally acknowledged standard for first-class stage microphones.
Especially due to their low self-noise and crosstalk behavior which is free of coloration, the KMS microphones are ideal for use with in-ear monitoring systems.
