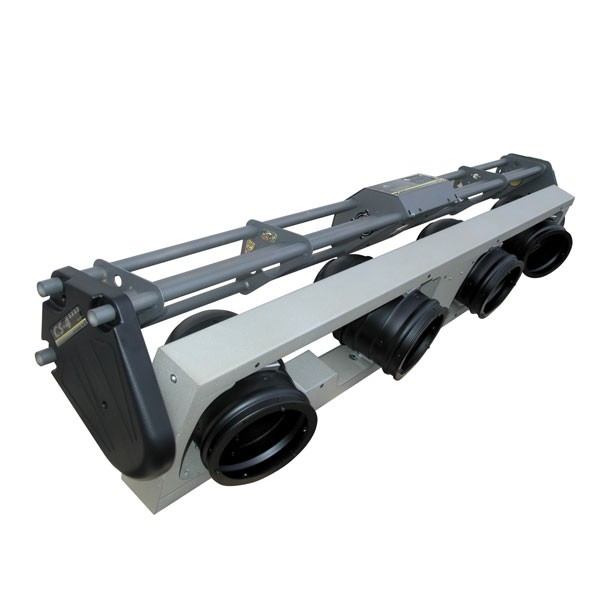

Studio Due CS-4 ACL moving fourbar + base stand
€65,00
The innovative mobile par-64. CS4/C are projectors of the last generation, exclusively created to enrich traditional scenographies where the PAR-64 are used, allowing the use of a great number of scenes yet using only a few units: this also means a fast installation and the reduction of space for the transport
SOURCE (4 x 250W)
STI 250W 28V (suggested)
Lamp life: 300 hrs
ACL GE 4552 250W 28V
Lamp life: 50 hrs
• OPTIC
Four units motorised PAR 64 system
• EFFECTS
Electronic progressive dimmer
• PAN TILT
Movement: stepper motor 8 or 16 bit resolution
Single tilt: 315
Quadruple pan: 270
• CONTROL
Standard interface: RS-485
Opto-coupled input
Protocol: USITT DMX512
• SETUP AND CONFIGURATION
Built-in microprocessor with LED display and buttons
• POWER SUPPLY
Rated voltage: 100V~, 120V~, 230V~, 240V~/50-60Hz with internal voltage selector
Rated power: 1100W
Rated current: 4,8A @ 230V
• DMX CHANNELS
– 13 ch mode: all pan/tilt 8 bit
– 15 ch mode: global pan/tilt 16 bit single pan 8 bit
– 20 ch mode: all pan/tilt 16 bit
• PHYSICAL
WxDxH: 2000x300x450 mm
Weight: 31 kg.
