24 mono mic inputs
4 line inputs
66 inputs to mix
1 ViSi Connect™ option card slot for 64 x 64 input/output expansion
Freely assignable faders and patching
Pre/Post selection per input per bus
AES in and out
Global mode encoders
GEQ on every bus
20 sub-group / aux busses
4 FX busses
8 Matrix busses
LR and C Mix busses
4 Stereo Lexicon Effects engines
Delay on inputs and outputs
4 Mute Groups
Freely assignable insert loops
Harman HiQnet integration
Colour touch screen interface

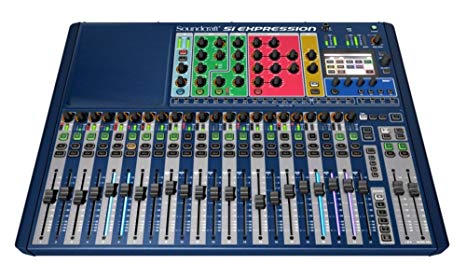

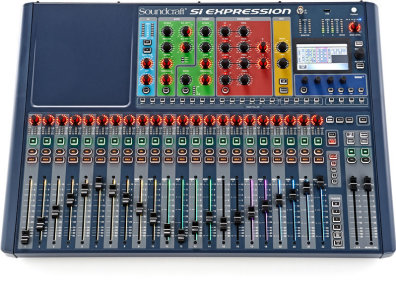

Dig01: Soundcraft Si Expression 2
The Si Expression 2 features 24 recallable mic pre amps (16 on Si Expression 1 and 32 on Si Expression 3) plus 4 line inputs, 4 internal stereo FX returns, AES in, and a 64×64 expansion slot offering more than enough scope to use every one of the 66 input processing channels. Every input processing channel has dedicated processing for high pass filter, input delay, gate, compressor and four band EQ whilst keeping it under control is a comprehensive automation system augmented with four mute groups and FaderGlow™ to light the way so you are never lost.
All Si Expression consoles have busses, output processing and connectivity to match the versatility of the inputs; the 14 aux/group mixes can be configured as 14 mono mixes, 8 mono plus 6 stereo mixes or almost anything in between, whilst the 4 matrix mixes can be mono or stereo as needed. The bus and matrix mixes are complemented with four more mix busses dedicated to the internal Lexicon FX processors all in addition to the left, right and centre busses. Each bus mix features a compressor, 4 band EQ, BSS graphic EQ and delay always available all of the time. Output connectivity is comprehensive with all models featuring 16 balanced line outputs, headphone monitor out, AES out and of course the 64×64 option slot.
To complement the channel and bus processing all Si Expression consoles integrate four stereo Lexicon FX processors based on the MX400 providing a wealth of sounds, user adjustable parameters and dedicated tap-tempo keys. As the FX are hardware based, use of all the effects, even on the most demanding programmes does not affect other processing in any way and all dynamics, EQs, filters, delays, and GEQs remain available regardless what you are doing.
